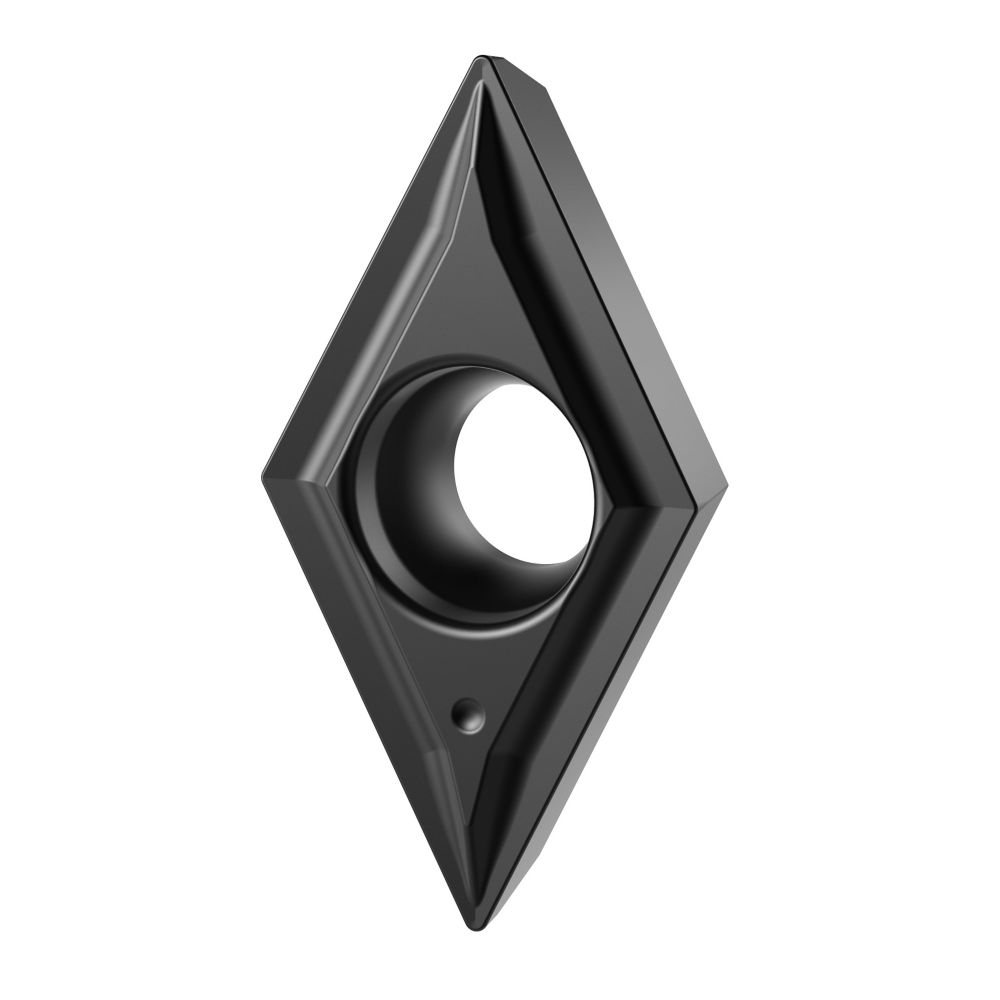

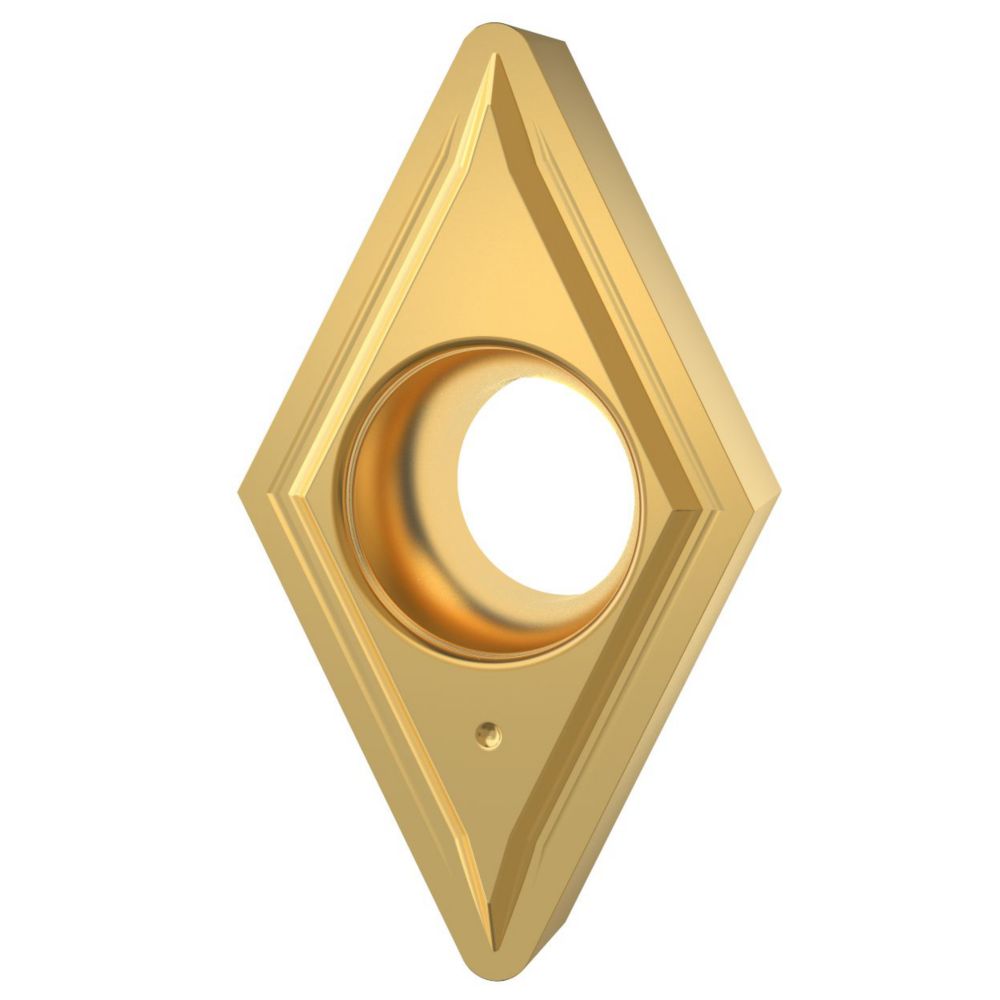

Kennametal • Positive Inserts • DPGT-LF • DPGT070204LF KC730

Name: Kennametal • Positive Inserts • DPGT-LF • DPGT070204LF KC730
SKU: KEN1120174
Availability: InStock

SKU: KEN1120174S/C: 1120174

Usually ships in 5 days

$14.62inc
GST

Screw-On Inserts

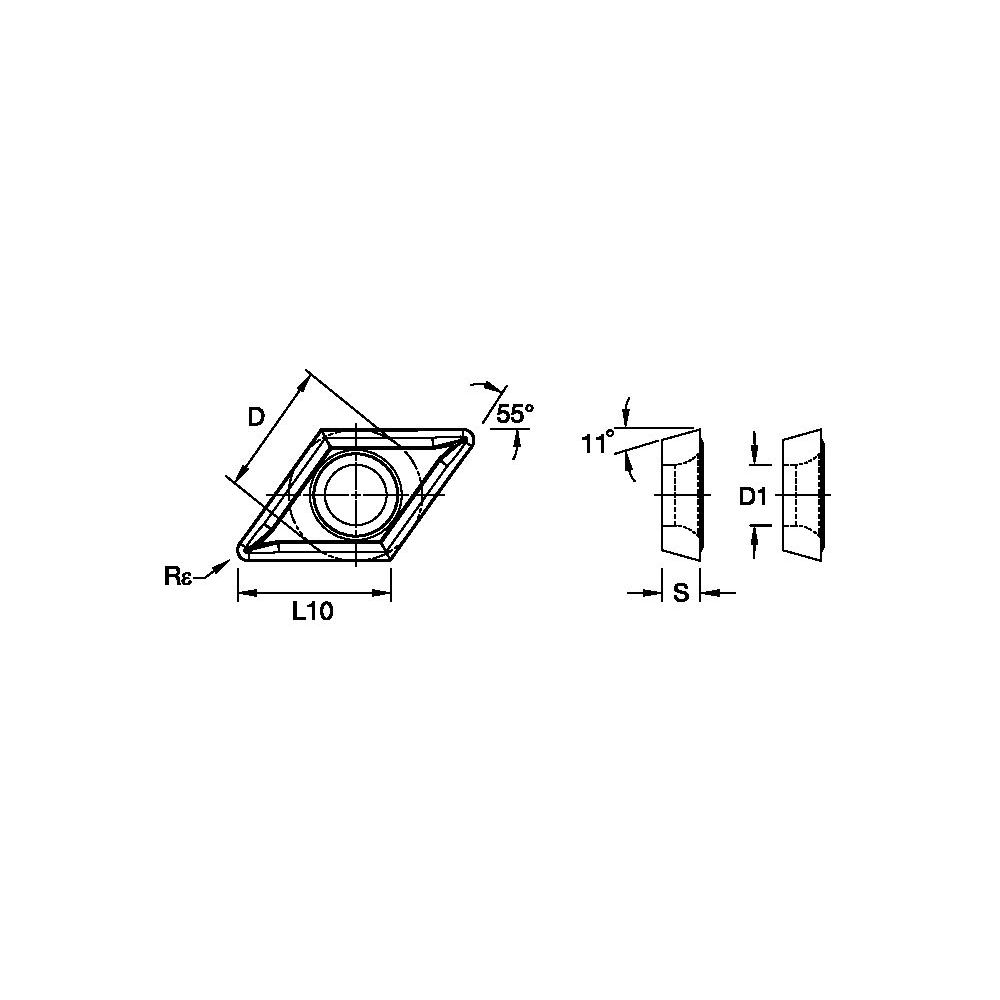

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	LF
Clearance Angle Major [ALPHAN]	11.000
Clearance Angle Minor [ALPHANM]	11.000
Coating	TiN
Corner Radius Frac [REPSILON]	1/64
Corner Radius Inch [REPSILON]	0.015625
Corner Radius Metric [REPSILON]	0.4000
Cutting Tool Material	Carbide
Engineering Insert Geometry	GT_LF
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.3052
Ins Cut Edge Length Metric [L10]	7.7520
Insert Gage Dimension Inch [M]	0.1275
Insert Gage Dimension Metric [M]	3.2380
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1102
Insert Hole Size Metric [D1]	2.8000
Insert IC Size Fraction [D]	1/4
Insert IC Size Inch [D]	0.2500
Insert IC Size Metric [D]	6.3500
Insert Mounting	3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges	2
Insert Rake Angle [GAMMA]	5.000
Insert Shape	D-Diamond/Rhombic 55
Insert Thickness Fraction [S]	3/32
Insert Thickness Inch [S]	0.0938
Insert Thickness Metric [S]	2.3800

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
